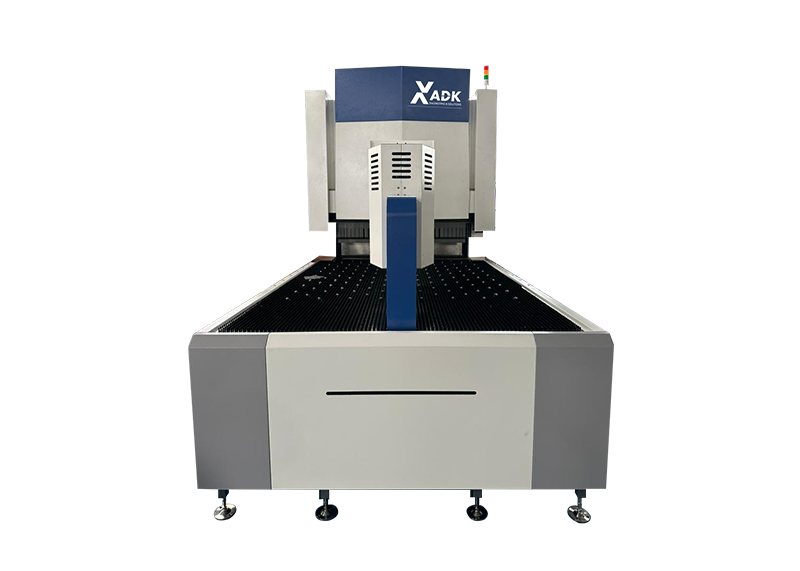

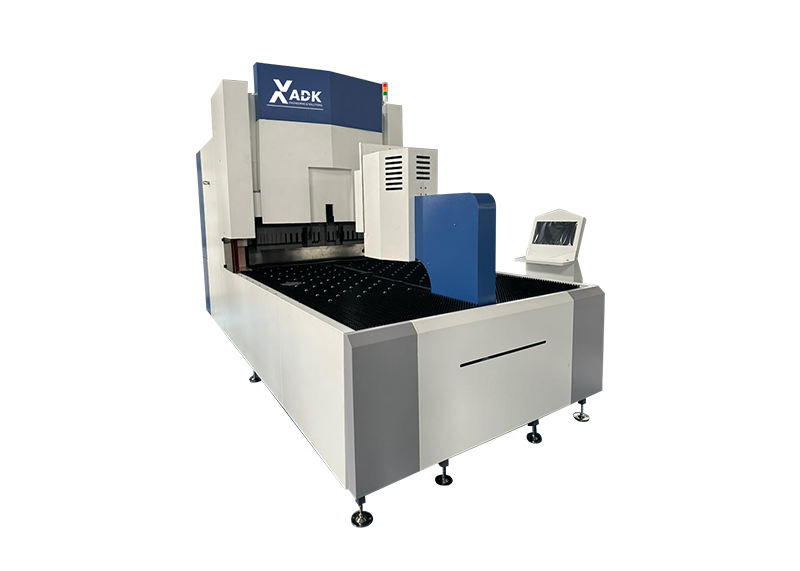

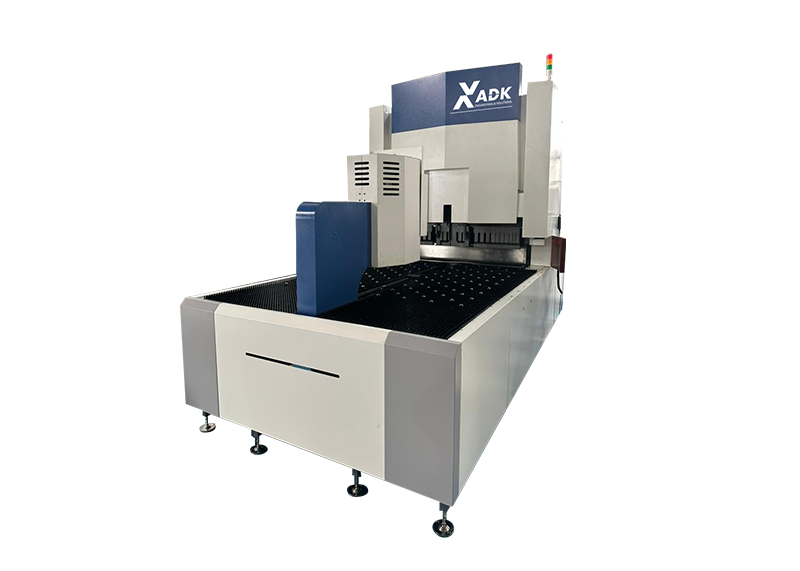

Panel Bender adopts universal bending die, which can complete bending of various shapes with only one set of die, and users don't need to customize another die. The equipment can easily meet the requirements of arc, dead edge, return, closed and other complex sheet metal bending.
| Model | ADK-PB1400 P | ADK-PB2000 P | ADK-PB2500 P |
|---|---|---|---|
| Fastest Bend Speed (S/Bend) | 0.2 | ||
| Maximum Bend Width (mm) | 1400 | 2000 | 2500 |
| Bend Height (mm) | 170 | ||
| Rated Voltage | 380V | 380V | 380V |
| Total Motor Power (KW) | 38 | 77 | 77 |
| Average Power (KW) | 1.8 | 2.5 | 2.8 |
| Overall Dimensions (mm) | 4400*1900*2900 | 5100*2650*3300 | 5650*3000*3400 |
| Total Weight (T) | 12T Approx | 16T Approx | 19T Approx |
